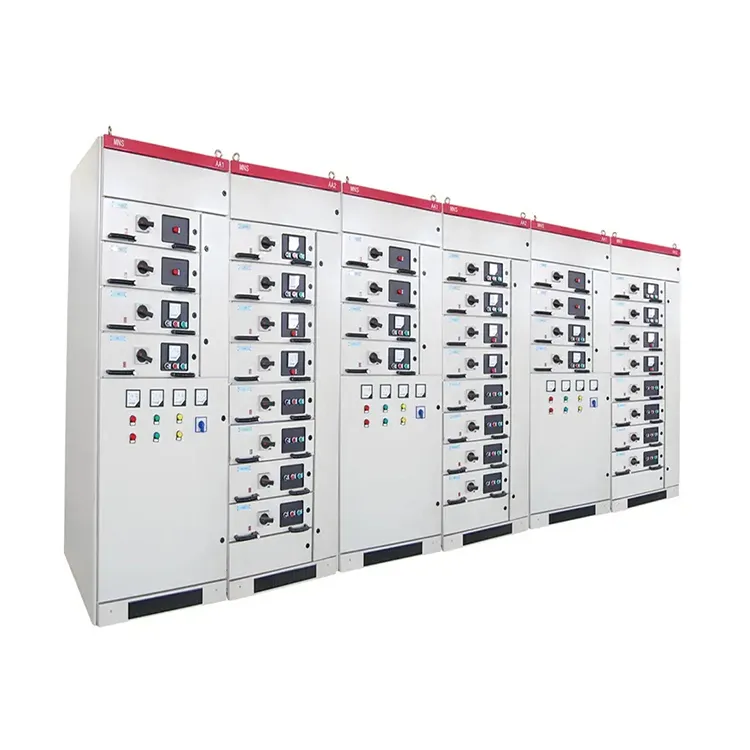

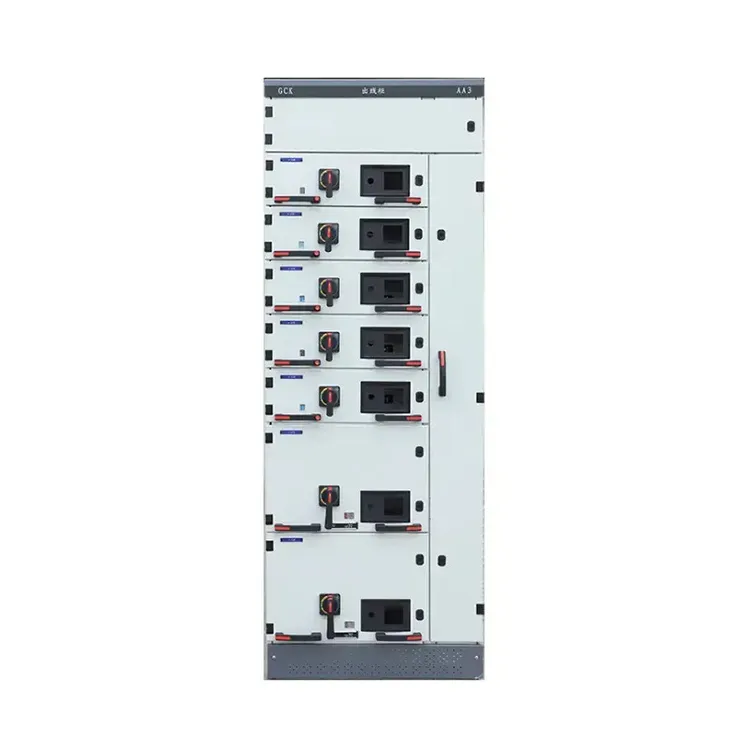

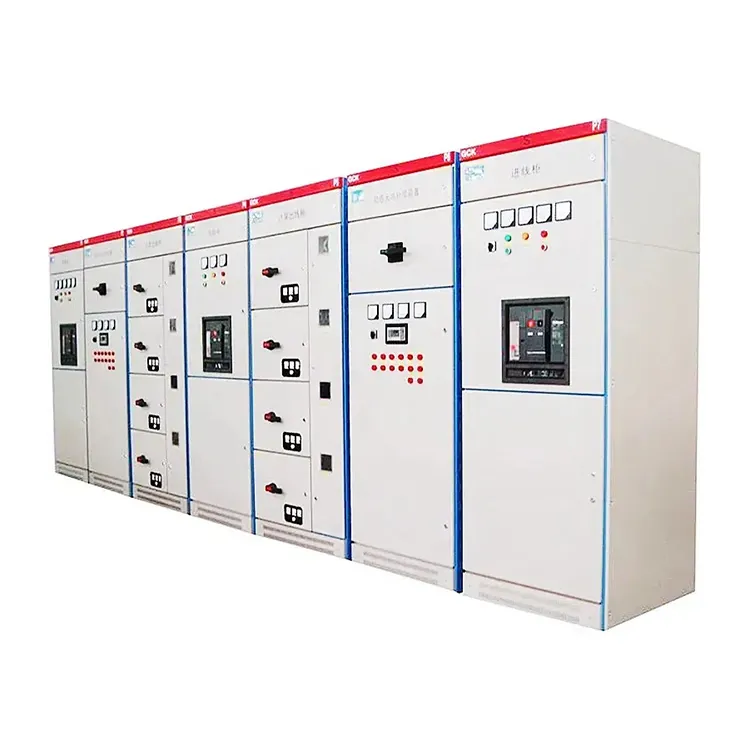

LT Panel 0.4KV Three-Phase Metal Enclosed Low Voltage Distribution Cabinet
The GCS and MNS series 0.4KV three-phase withdrawable low-voltage switchgear, also known as LT panel metal enclosed distribution cabinets, are professional drawer-type power distribution cabinets tailored for industrial, commercial, and power system scenarios. Boasting outstanding modular design, convenient maintenance performance and strong expandability, this series of switchgear perfectly meets the high-standard demands of power distribution continuity, operational flexibility and intelligent management for modern power systems. With superior cost performance positioned between the economical GGD fixed cabinet and high-end full-featured MNS cabinet, it has become a mainstream and cost-effective equipment choice for industrial and civil low-voltage power distribution projects.
Product Details
GCS and MNS withdrawable low-voltage switchgears are standard drawer-type metal-enclosed distribution cabinets designed for 0.4KV three-phase low-voltage power distribution systems. Widely applicable to industrial production, commercial construction and public power grid systems, these cabinets focus on flexible power distribution, stable system operation and convenient daily maintenance, solving the pain points of traditional distribution equipment such as poor flexibility, troublesome overhaul and insufficient expandability. Balancing economy and performance, they fill the gap between entry-level fixed switchgears and high-end customized power distribution equipment, occupying an important position in modern industrial power distribution fields.
Core Product Advantages
1.Modular Drawer Structure, Ultra-Convenient Maintenance
The whole equipment adopts an independent modular drawer design, with each functional drawer operating as a separate unit. In the event of circuit failure or component aging, the faulty drawer can be directly pulled out and replaced independently, without shutting down the entire cabinet or interrupting the overall power supply. This design greatly shortens equipment maintenance time, reduces power outage losses, and effectively guarantees the continuous and stable operation of the power distribution system.
2.Standardized Manufacturing, Stable Quality & Lower Cost
Adopting an integral fully assembled structure and standardized production process, all internal parts and components feature high universality and interchangeability. The unified production standard effectively stabilizes product quality and reduces the failure rate of equipment operation. Meanwhile, the high versatility of accessories greatly lowers subsequent daily maintenance, component replacement and equipment operation costs, bringing long-term economic benefits for users.
| Cabinet Dimension | |||||||||
| Height (mm) | 2000 | ||||||||
| Width (mm) | 400 | 600 | 800 | 1000 | |||||
| Height (mm) | 800 | 1000 | 800 | 1000 | 600 | 800 | 1000 | 600 | 800 |
| Rated Voltage of Main Circuit | AC 380/400/600 | |
| Rated voltage of auxiliary circuit(V） | AC 220,380(400) DC 110,220 | |
| Rated phase(Hz) | 50(60) | |
| Rated insulation voltage(V) | 600(1000) | |
| Rated current(A) | Horizontal bus | ≤4000 |
| Vertical bus(MCC) | 1000 | |
| Busbar rated short-time withstand current(kA/1s) | 50,80 | |
| Busbar rated peak withstand current(kA/0.1s) | 105176 | |
| Power frequency test voltage(V/1min) | Main circuit | 2500 |
| Auxiliary circuit | 1760 | |
| Busbar | Three-phase four-wire system | A.B.C.PEN |
| Three-phase five-wire system | A.B.C.PE.N | |
| Protection level | IP30.IP40 | |
Wide Application Scenarios
Industrial Fields
Ideal for automated production lines, petrochemical engineering, metallurgy, manufacturing and other industrial scenarios that require high reliability and stable continuous power distribution, adapting to complex industrial power consumption environments and frequent load changes.
Commercial & Public Buildings
Suitable for large shopping malls, comprehensive hospitals, data centers, office buildings and other key commercial and public facilities. It ensures uninterrupted power supply for core equipment, meets the high continuity and safety requirements of commercial power consumption, and supports intelligent power management.
New Energy Industry
Perfectly applicable to the low-voltage power distribution links of photovoltaic power stations, wind farms and other new energy projects. It can well adapt to the fluctuating and unstable power load characteristics of new energy power generation, realizing safe, stable and efficient power distribution and grid connection.
