Circuit Breaker Breaking Capacity vs Making Capacity

breaking capacity vs making capacity requires a clear engineering boundary before it can support a purchase, inspection or commissioning decision. Circuit breaker breaking capacity and making capacity describe different duties during a short-circuit event. Breaking capacity concerns the current the breaker can interrupt under the specified test and recovery conditions. Making capacity concerns the current and peak asymmetrical force the breaker can close onto when a fault is already present. Both values must match the network study and the complete switchgear assembly; neither should be selected from a catalog line in isolation.

Define breaking duty

Breaking duty is associated with opening a fault current and recovering dielectric strength after current interruption. The rated value is tied to voltage, frequency, power factor or time constant, operating sequence, short-time withstand and the standard edition.

Request the breaker and assembly ratings together. Confirm whether the stated value applies to the exact voltage, earthing system, busbar arrangement, cable interface and protection clearing time. A breaker with a suitable normal current can still be wrong for the prospective fault.

Define making duty

Making duty covers closing onto a fault and the resulting first peak and electromagnetic forces. The asymmetrical peak can be materially different from the symmetrical RMS value used in another part of the study.

Use the network short-circuit calculation and manufacturer rating definitions. Do not compare a peak making value directly with an RMS breaking value. Keep units, time basis and test conditions visible in the procurement matrix.

Connect the values to the network study

The prospective short-circuit current, X/R behavior, source contribution, transformer impedance, cable length and clearing time determine the duty at the installation. Distributed generation or a topology change can alter both the fault current and the peak.

Have the protection or system engineer issue the fault level at each bus and the assumed clearing sequence. Re-check the breaker when the transformer, source, earthing or relay settings change. A copied value from a neighboring feeder is not evidence.

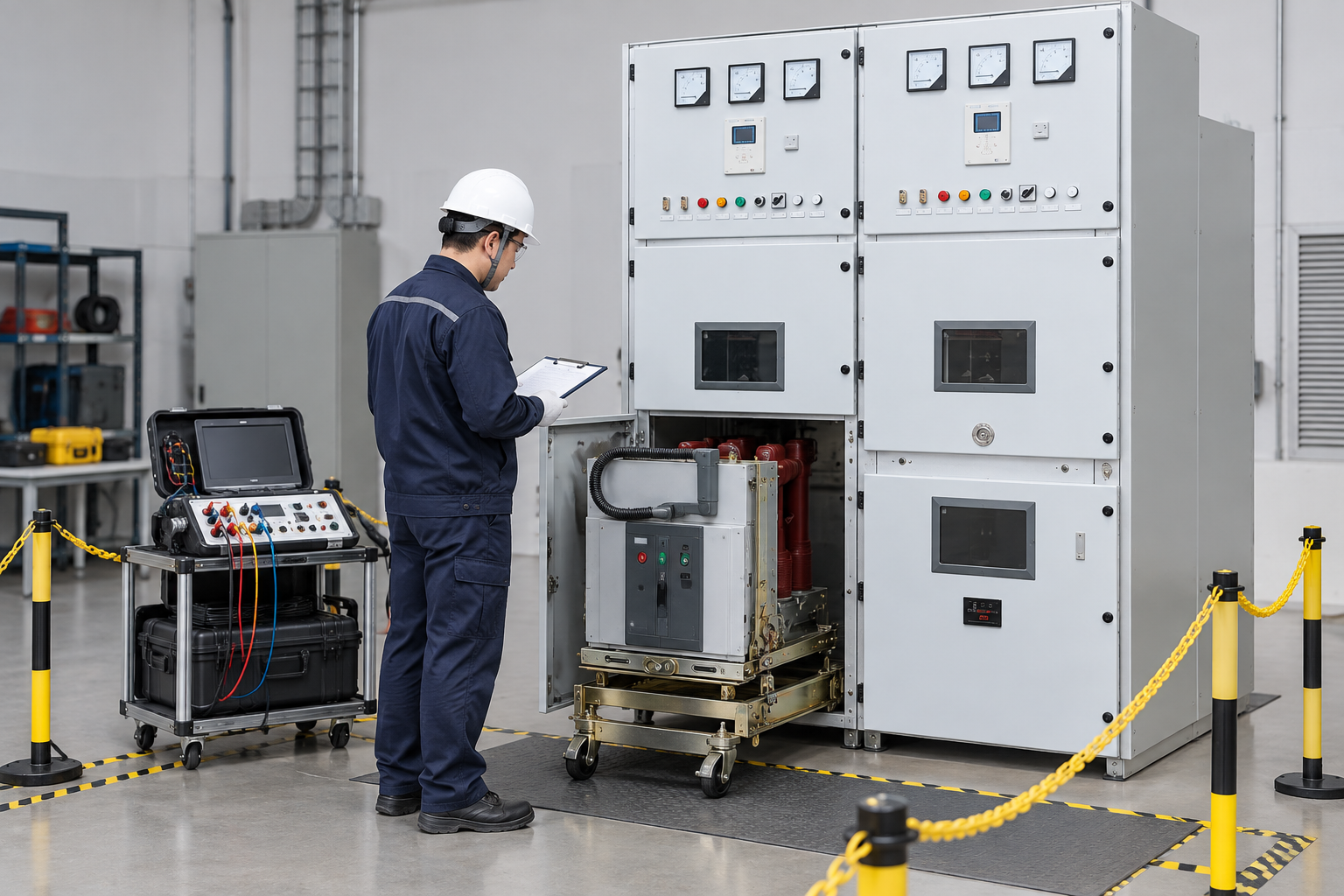

Check the complete assembly

The breaker, truck, primary disconnects, shutters, busbar, enclosure, earthing switch and interlocks form the verified switchgear arrangement. A standalone breaker rating does not validate a modified cubicle.

Request design verification or type-test scope for the offered lineup. Compare connected, test, isolated and removed positions, and retain the approved drawings and routine test records.

Review protection and coordination

The breaker must interrupt before thermal or mechanical limits are exceeded, while the relay and current transformers must provide dependable detection. Selectivity, backup protection and breaker operating time are part of the decision.

Record relay settings, CT data, breaker opening time and the required margin in the protection file. Do not use a higher advertised rating to hide poor coordination or a missing fault study.

Build a practical comparison

A buyer should list voltage, normal current, breaking duty, making peak, short-time withstand, operating sequence, TRV, mechanism, interlocks, internal-arc option, tests and service evidence.

Mark each row confirmed, excluded or requiring clarification. The final purchase decision should be traceable to the network calculation and the exact tested switchgear arrangement.

Define the equipment boundary

Start with the exact asset, voltage class, construction and released drawing. A useful engineering answer is tied to a physical boundary and a defined operating state. Record where the calculation, inspection or comparison starts and ends, and identify equipment intentionally excluded. This prevents a general catalog description from being mistaken for a project acceptance value.

Keep the product identity consistent through design, procurement and commissioning. Note the supplied model, accessories, enclosure, cable interface and environmental assumptions. If the installed arrangement differs from the drawing, stop and obtain an approved disposition instead of filling a missing value from another product family.

Use standards and manufacturer evidence together

Standards define the framework, test concepts and terminology, while manufacturer documents define the verified construction and operating limits of the supplied equipment. A standard link cannot prove that an unverified modification is acceptable, and a brochure cannot replace the project specification or safety rules.

For procurement, request the standard edition, design verification or type-test scope, routine test records, installation limits and any altitude or environment correction. Store the evidence with the asset record. When a result is disputed, compare definitions, test conditions and boundaries before comparing numbers.

Plan installation and commissioning

Installation quality often determines whether a sound design remains sound in the field. Confirm foundations, access, lifting, clearances, ventilation, cable bend radius, earthing, labels and control interfaces before energization. Use the approved method statement and permit system. A neat cabinet is not proof that every bond, interlock or sensor is connected correctly.

Commissioning should move from document checks to visual inspection, mechanical operation, electrical continuity, functional logic, protection or control tests and final restoration. Record instrument identity, settings, raw values, exceptions and the person who performed the check. Keep equipment isolated whenever a test or inspection exposes a hazard.

Control changes and handover

A change to a cable route, relay setting, tap position, cooling path or earthing connection can alter the original design basis. Use a controlled change process with an owner, technical review, drawing revision and acceptance evidence. Temporary test arrangements must be removed or clearly tagged before handover.

The final package should include as-built drawings, test sheets, approved settings, equipment identity, maintenance instructions, deviations and training records. A future operator should be able to reproduce the decision without relying on memory or an unlabelled photograph.

Safety note

Electrical equipment can retain energy and can be energized from more than one source. This article is not a switching instruction. Qualified personnel must follow local regulations, isolation, absence-of-voltage verification, grounding and supervision requirements. Never reach into an energized compartment or defeat an interlock to make a measurement.

If a test fails, an enclosure is damaged, abnormal noise or discharge is observed, or the actual configuration is unclear, keep the asset in a safe state and escalate to the responsible engineer. Repeated energization without diagnosis can increase damage and risk.

Record the baseline

Keep the initial operating condition, measurement method and acceptance decision with the asset record. A baseline makes later troubleshooting and retesting more efficient.

When the installation changes, compare the new result with the approved baseline and document the reason for any difference.

How to use the result in a project

Start with the released design and final equipment identity. Note the operating state, measurement point, environmental conditions and decision the evidence must support. Then compare the record with the applicable standard, manufacturer instruction and project acceptance plan. If a prerequisite is missing, keep the item open rather than filling the gap with a generic value. This gives procurement, commissioning and operations teams the same reference point.

For a supplier inquiry, ask for the calculation basis, verified arrangement, limits, test records and deviations. For site work, record the person, instrument, date, isolation boundary and restoration check. A concise record is more useful than a long report that hides the one fact needed to approve the next step.

Related product and engineering guides

For the matching Shenheng product context, see the relevant product page. For the broader topic, read the parent engineering guide. Related reading: first related guide and second related guide.

Sources and standards

Authority source 1 · Authority source 2

Video for system context

This neutral Practical Engineering explainer provides background on substations, transformers and switchgear. It is educational context, not a switching or test instruction.

Frequently asked questions

What is the first step?

Define the exact breaking capacity vs making capacity boundary, equipment identity and operating state before comparing a value or feature.

Can a catalog page replace project engineering?

No. The linked product page identifies a relevant Shenheng equipment family. The supplied model, accessories, standards and project acceptance plan control the final decision.

What evidence should be retained?

Keep the approved drawing, calculation or test method, raw readings, photographs, instrument details, deviations, settings and final as-built record.

Does this article authorize live work?

No. Qualified personnel must follow the site electrical-safety program, isolation and manufacturer instructions.
