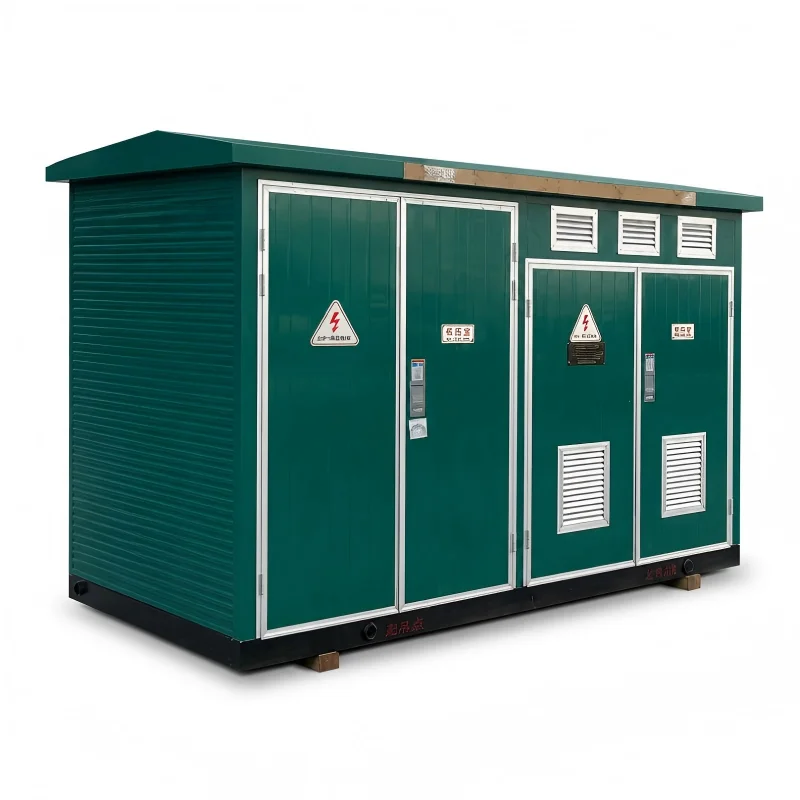

High Quality European Type Box Substation 10kV 35kV Outdoor Prefabricated Compact Transformer Station for Power Distribution

Product Overview & Application

The European-style prefabricated substation (often referred to as a “Euro Box Substation”) is a complete set of outdoor power distribution equipment. It integrates the functions of a high-voltage ring main unit (RMU), a transformer (oil-immersed or dry-type), and low-voltage distribution panels. Widely used in urban residential areas, commercial centers, street lighting, and industrial facilities, it provides a reliable and flexible solution for receiving and distributing electrical energy in medium-voltage networks.

Key Features & Structural Design

1.Fully Enclosed & Weatherproof: Constructed with a high-strength steel frame and galvanized steel plates, finished with anti-corrosion and anti-UV powder coating. The distinctive green shell is designed to withstand rain, snow, and extreme temperatures, ensuring long-term durability outdoors.

2.Partitioned Safety Design: The internal space is strictly divided into three main compartments: the High Voltage Room, Transformer Room, and Low Voltage Room. This layout effectively isolates high-voltage components from low-voltage controls, ensuring maximum safety for operators and equipment.

3.Efficient Heat Dissipation: Equipped with a roof structure that includes natural ventilation louvers and an optional exhaust fan system. The transformer room features independent heat dissipation to prevent overheating during high-load operations.

4.Customization & OEM: We support custom sizes, colors (e.g., dark green, grey), and internal equipment brands. The transformer capacity and type (oil-immersed or dry-type) can be configured based on your specific project requirements. High ingress protection (IP33/IP44) is standard.
